Seipner SM8010124 SE100/SP95T - Bow Thruster Replacement Motor Assembly 24 Volt

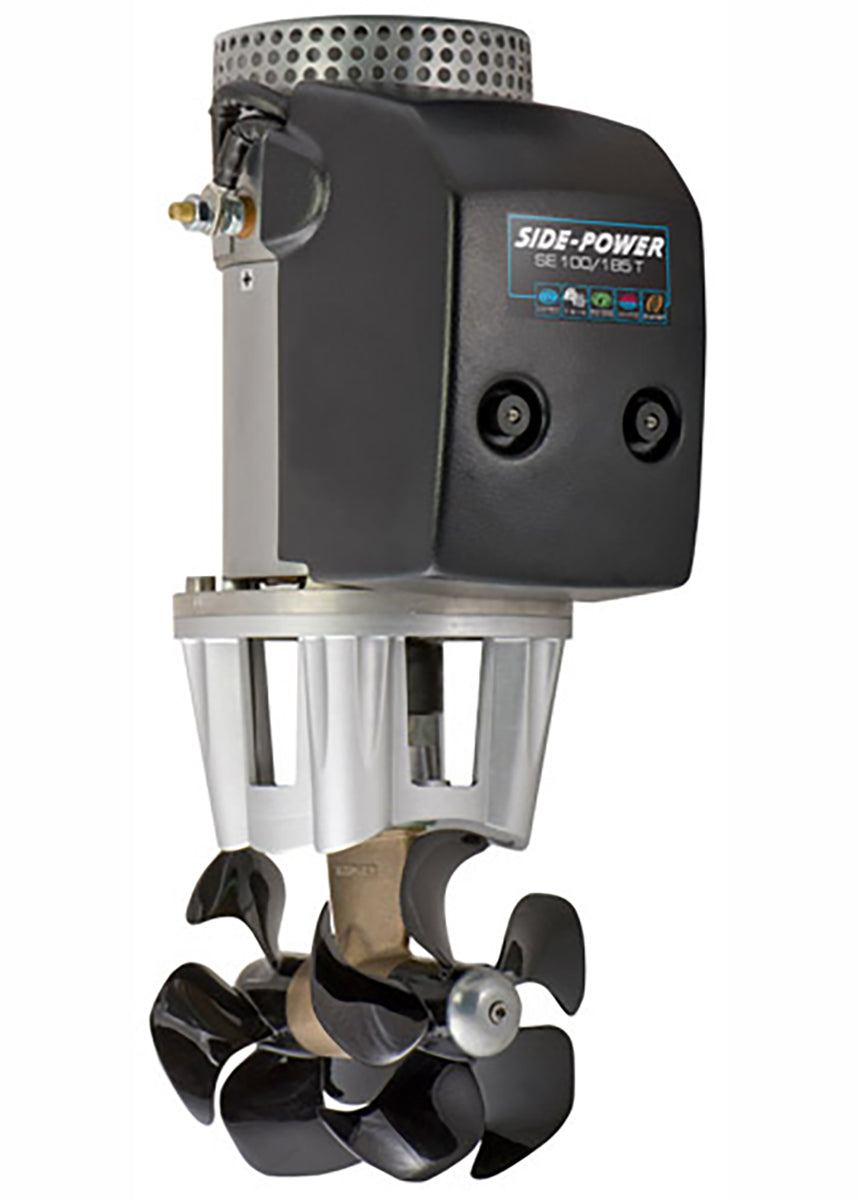

Sleipner - Side Power SE100/185 12V thruster designed for boats 40'-56'

Thruster features -
• Extra quiet, high thrust 5-blade "skew" propellers
• "Plug and Go" - all electrical components come completely set up - just connect the thruster to the battery
• Sophisticated "Intelligent Power Control" solid state circuitry prevents damage due to overheating or a sudden change in drive direction; "auto-off" feature deactivates control panel after a set period of inactivity
• Child-proof on/off system; no accidental activation
• All models can be installed as stern thrusters
• Purpose-built, high copper content, electric motors designed for maximum performance at real-life voltages provide exceptionally long run times
• Gear housing maintains positive oil pressure to prevent water infiltration
• Lifetime lubricated/ceramic-carbon mechanically sealed drive train, streamlined gear housing, shear-pin (single prop) or flex-coupling (twin prop) drive gear protection, easy access anodes
• World-wide dealer support
• 2-year limited warranty

NOTE — A complete installation includes the thruster, a tunnel, choice of control panel, wire harness, and main on/off power switch and fuse; all purchased separately

• Thrust @10.5VDC 220 lbs (100 kg)
• Thrust @24VDC 256 lbs (116 kg)
• Typical Boat Size 40-56' (12-17 m)
• Tunnel Diameter (I.D.) 7.28" (185 mm)
• Power @ 10.5V 8.4 hp (6.3 kg)
• Recommended Fuse Size 500 Amps (SMANL500)
• Fuse Size 500 Amp
• Minimum Battery Capacity 1425 CCA SAE
• Approximate Ship Weight (lbs) 68

See all the details at: https://www.imtra.com
